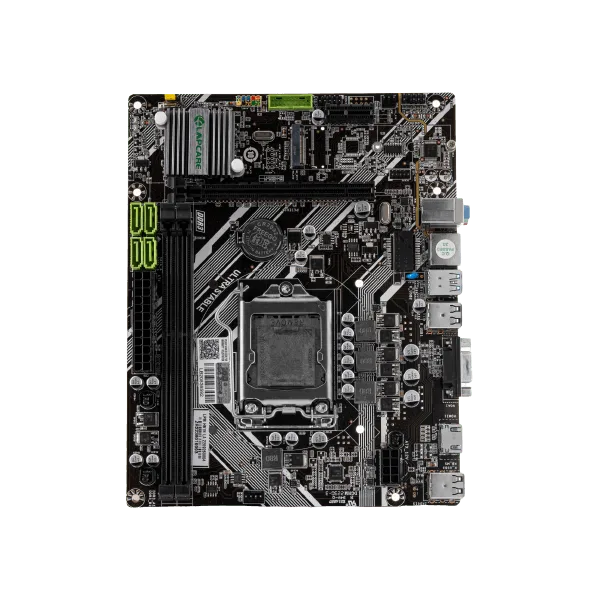

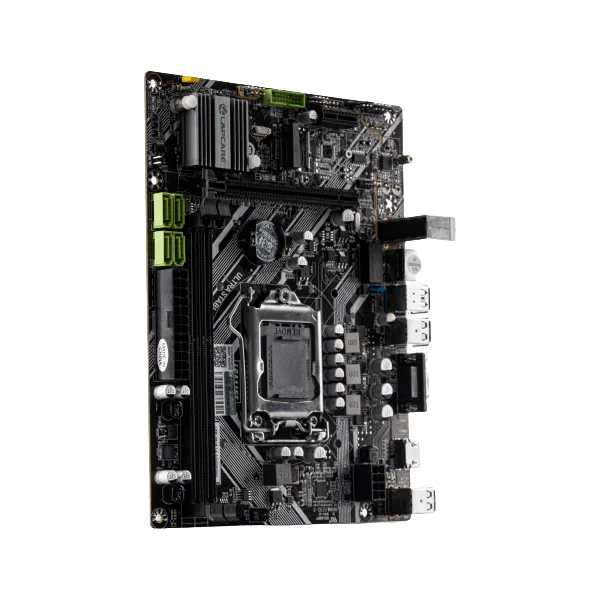

LAPCARE H61 Motherboard with NVME Slot Socket 1155 Motherboard Support Intel i3/i5/i7 series CPU 2nd and 3rd Gen
Elevate your computing experience with the Intel H61 chipset motherboard, a powerhouse designed to enhance your system’s performance and capabilities.
This motherboard boasts compatibility with socket 1155 Intel i3/i5/i7 series CPUs, including the 2nd and 3rd generation processors. Whether you’re a casual user or a demanding professional, this motherboard is ready to handle your computing needs.
Experience seamless multitasking with support for Dual-channel DDR3 memory at speeds of 1066/1333MHz, and expand your memory up to a whopping 16GB with 2 DIMM slots. Say goodbye to slowdowns and bottlenecks, and enjoy a smoother computing experience.
Immerse yourself in high-quality audio with the 6-channel onboard high-definition audio system. Whether you’re gaming, watching movies, or listening to music, you’ll appreciate the rich, immersive sound.
Stay connected with the built-in 100/1000mbps LAN card, ensuring you have reliable and fast network connectivity for all your online activities, from streaming and gaming to work and browsing.
Upgrade your system with the Intel H61 chipset motherboard and unlock the full potential of your PC. It’s the perfect choice for those seeking a robust and versatile motherboard to support their computing needs. Trust in Intel’s reputation for innovation and reliability to take your computing experience to the next level.
General:
Model/Part: LPMH61
Series: LMB
Socket: LGA 1155
Chipset: Intel H61
Lan: Realtek 8105E 10/100 Mbps
Audio: 3 Audio Jack (Realtek 661 HD) 6 channel
Form factor: Micro ATX
Memory Specs:
Memory Support: 16gb ddr3
Ram Slot: 2 (Each support 8gb)
Back Panel:
1 x HDMI Port
1 x D-Sub (VGA) Port
6 x USB Port
1 x LAN Port
3 x Audio Jack
On-Board:
1 x Front panel Connector
1 x Speaker Header
1 x Front audio Connector
1 x USB 3.0 Connector (support 2)
1 x USB Connector (support 2)
4 x SATA 3Gb/s Port
1 x NVMe Slot
1 x 4 pin CPU fan Connector
1 x 3 pin SYS fan Connector
1 x 24 pin ATX Power Connector
1 x 4 pin ATX 12v Power Connector
1 x CLR CMOS Header
1 x Auto PWR Header
1 x DEBUG Header
Expansion Slot:
1 x PCI Express x16 slot
1 x PCI Express x1 slot
Warranty:
All India 3 Year Lmited Manufacturer Warranty
